utfGrid中获取不到数据

0 投票

代码如下

 var map, layer, vectorLayer, infowin, infowin1, highlightFea, popfeature,
                host =  "http://localhost:8090" ,
                url = host + "/iserver/services/map-yanjin/rest/maps/yanjin";
        var controlmove, controlclick, utfgridPark, utfgridSchool;

        function init() {
            map = new SuperMap.Map("map", {
                controls: [
                    new SuperMap.Control.ScaleLine(),
                    new SuperMap.Control.Zoom(),
                    new SuperMap.Control.LayerSwitcher(),
                    new SuperMap.Control.Navigation({
                        dragPanOptions: {
                            enableKinetic: true
                        }
                    })],
                projection: "EPSG:4326",
                //设置地图的最大范围,这行代码相当重要
                maxExtent: new SuperMap.Bounds(114.49, 36.86, 114.51, 36.87)
            });
            layer = new SuperMap.Layer.TiledDynamicRESTLayer("China", url, { transparent: false }, {
                useCanvas: true, maxResolution: "auto"
            });
            vectorLayer = new SuperMap.Layer.Vector("Vector Layer");
            //注意:pixcell与utfgridResolution两个属性有对应关系,在使用的时候也要注意场景;
            //1.其中pixcell为发送给服务端请求utfgrid瓦片的精度,数值越小,精度越高,相应的瓦片大小也就越大;
            //2.utfgridResolution为客户端解析瓦片使用的精度,应该与pixcell的值相等,否则会产生位置与属性对应不上的问题;
            //3.通常如果UTFGrid图层为面图层,对应的数据量会比较大,为了不影响页面的正常浏览,可以将这两个属性设的大一些;
            //4.isUseCache设置是否使用缓存,使用缓存能够提高性能;

            utfgridSchool = new SuperMap.Layer.UTFGrid("UTFGridLayerSchool", url,
                    {
                        layerName: "SH_0210_交通信号灯@arcgis",
                        utfTileSize: 256,
                        pixcell: 0.1,
                        isUseCache: true
                    },
                    {
                        utfgridResolution: 0.1
                    });
            utfgridSchool.maxExtent = layer.maxExtent;
            utfgridPark = new SuperMap.Layer.UTFGrid("UTFGridLayerPark", url,
                    {
                        layerName: "tingchechang@arcgis",
                        utfTileSize: 256,
                        pixcell: 8,
                        isUseCache: true
                    },
                    {
                        utfgridResolution: 8
                    });
            utfgridPark.maxExtent = layer.maxExtent;

            //监听move事件控件
            controlmove = new SuperMap.Control.UTFGrid({
                layers: [utfgridPark, utfgridSchool],
                callback: callback,
                handlerMode: "move"
            });
            //监听click事件控件
            controlclick = new SuperMap.Control.UTFGrid({
                layers: [utfgridPark, utfgridSchool],
                callback: callback2,
            });

            layer.events.on({ "layerInitialized": addLayer });
            map.addControl(controlmove);
            map.addControl(controlclick);
            map.events.on({ "zoomend": reviewUTFgrid });
        }

        function addLayer() {
            var center = new SuperMap.LonLat(114.499655765765, 36.8687062307649);
            map.addLayers([layer, vectorLayer, utfgridSchool, utfgridPark, ]);
            map.setCenter(center, 3);
            reviewUTFgrid();
        }

        //move事件回调函数
        var callback = function (infoLookup) {
            if (infowin)
                map.removePopup(infowin);
            if (highlightFea)
                vectorLayer.removeFeatures(highlightFea);
            if (infoLookup) {
                var info;
                for (var idx in infoLookup) {
                  //  alert(idx);
                    info = infoLookup[idx];
                    //var last = JSON.stringify(info); //将JSON对象转化为JSON字符

                    //alert(last);
                    if (info && info.data) {
                        alert(1);
                        var dom = "<div style='padding: 5px;padding-left:5px;font-size:12px;font-family:Microsoft YaHei;line-height:8px;color: black;background:lightgoldenrodyellow'>" + info.data.name + "<br></br>" + "点击查看更多..." + "</div>";
                        //设置x与y的像素偏移量,不影响地图浏览;
                        var xOff = (1 / map.getScale()) * 0.003;
                        var yOff = -(1 / map.getScale()) * 0.003;
                        var pos = new SuperMap.LonLat(new Number(info.data.X) + xOff, new Number(info.data.Y) + yOff);
                        infowin = new SuperMap.Popup("chicken",
                                pos,
                                new SuperMap.Size(0, 0),
                                dom,
                                false, null);
                        //根据弹窗内容自动调整弹窗大小
                        infowin.autoSize = true;
                        //设置默认样式不显示
                        infowin.setBackgroundColor("none");
                        map.addPopup(infowin);
                        highlightFea = new SuperMap.Feature.Vector(new SuperMap.Geometry.Point(info.data.X, info.data.Y),
                                null,
                                {

                                    //绘制矢量点方式
                                    //                                    pointRadius:7,
                                    //                                    fillColor:"#3399FF",
                                    //                                    fillOpacity:0.5,
                                    //                                    strokeColor:"#0033FF",
                                    //                                    strokeWidth:3,
                                    //                                    strokeOpacity:0.2
                                    //引用图片方式
                                    externalGraphic: "image/h12.png",
                                    graphicWidth: 15,
                                    graphicHeight: 15

                                }
                        );
                        vectorLayer.addFeatures([highlightFea]);
                    }
                }
            }
        };

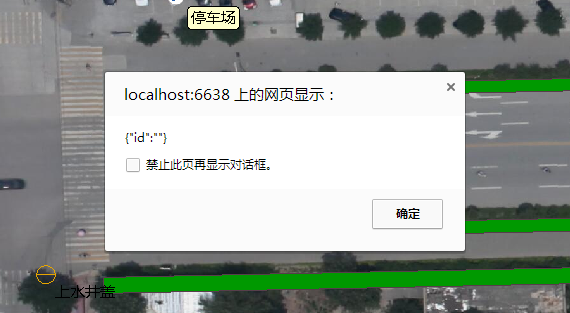

提示个这,

8月 3, 2017 分类:  563次浏览 | 用户: lin2018 初出茅庐 (71 分)

1个回答

0 投票
layer要先添加到地图上,layer.maxExtent才不为null或undefined;当然也可以直接new 一个 Bounds 对象来赋值。
8月 4, 2017 用户: 毛瑞 名扬四海 (1,780 分)
大神,代码怎么写。。

以下两种方法二选一,关键就是在于utfgridSchool.maxExtent属性。
1. utfgridSchool.maxExtent = new SuperMap.Bounds(-180,-90,180,90); // 对应地图范围,左下右上
2. 先map.addLayer(layer); 之后再 utfgridSchool.maxExtent = layer.maxExtent; 因为layer是异步加载的,你的写法执行到赋值那句时layer.maxExtent还是null或者undefined。

另外,直接在iServer地图服务那儿,浏览于 for JavaScript,比如:
http://support.supermap.com.cn:8090/iserver/services/map-china400/rest/maps/China_4326.ijs
右上角选择图层,鼠标移动会显示属性,用的就是UTFGrid

...
