vue 使用openlayers动态轨迹出错

0 投票

今天想在vue项目中写一个基于mapv可视化的动态轨迹的案例,遇到了问题:

以下是渲染的代码,初始化地图代码没有贴!

import Image from 'ol/layer/Image';
  import * as mapv from 'mapv'

      rs = rs.split("\n");
      var maxLength = 0;
      for (var i = 0; i < rs.length; i++) {
        var item = rs[i].split(',');
        var coordinates = [];
        if (item.length > maxLength) {
          maxLength = item.length;
        }
        for (var j = 0; j < item.length; j += 2) {
          coordinates.push([item[j], item[j + 1]]);
          timeData.push({
            geometry: {
              type: 'Point',
              coordinates: [item[j], item[j + 1]]
            },
            count: 1,
            time: j
          });
        }
        data.push({
          geometry: {
            type: 'LineString',
            coordinates: coordinates
          }
        });
      }

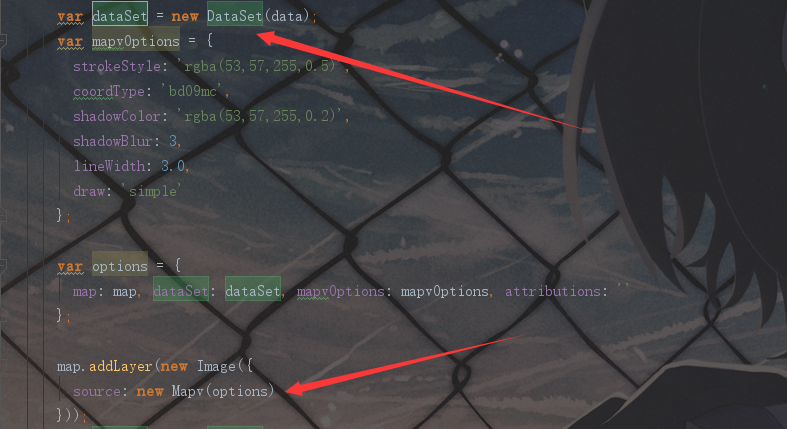

      var dataSet = new mapv.DataSet(data);
      var mapvOptions = {
        strokeStyle: 'rgba(53,57,255,0.5)',
        coordType: 'bd09mc',
        shadowColor: 'rgba(53,57,255,0.2)',
        shadowBlur: 3,
        lineWidth: 3.0,
        draw: 'simple'
      };

      var options = {
        map: map, dataSet: dataSet, mapvOptions: mapvOptions, attributions: ''
      };

      map.addLayer(new Image({
        source: new ol.source.Mapv(options)
      }));
      var dataSet = new mapv.DataSet(timeData);

      var mapvOptions = {
        fillStyle: 'rgba(255, 250, 250, 0.2)',
        coordType: 'bd09mc',
        globalCompositeOperation: "lighter",
        size: 1.5,
        animation: {
          stepsRange: {
            start: 0,
            end: 100
          },
          trails: 3,
          duration: 5,
        },
        draw: 'simple'
      };

      var options = {
        map: map, dataSet: dataSet, mapvOptions: mapvOptions
      };

      map.addLayer(new Image({
        source: new ol.source.Mapv(options)
      }));

rs代表所有的点位,这里省略了,太多没有贴!

执行下面这2段加入图层的代码就会出错

      map.addLayer(new Image({
        source: new ol.source.Mapv(options)
      }));
      map.addLayer(new Image({
        source: new ol.source.Mapv(options)
      }));

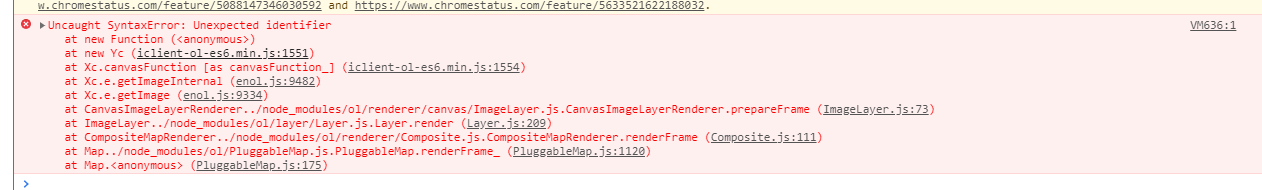

错误如下图:

导致地图显示空白,然后拖动或者放大一下才会出来,并且没有加载线的效果,请大神帮忙看看是依赖错了还是代码不规范导致的.

5月 14, 2020 分类:  212次浏览 | 用户: babyn~ (7 分)

1个回答

0 投票
您好,请按照如下方式引入并使用

import ImageLayer from 'ol/layer/Image';

import Mapv  from '@supermap/iclient-ol/overlay/Mapv'

import {geojson,DataSet}  from 'mapv/build/mapv'

                              this.layerone=new ImageLayer({

                                    source: new Mapv({map: this.map,

                                    dataSet: dataSet1,

                                    mapvOptions: options})

                                });

                                this.map.addLayer(this.layerone);
5月 15, 2020 用户: 阳俊林 名扬四海 (3,344 分)

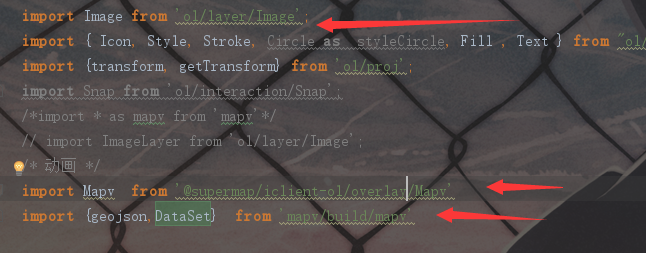

您好,按照你说的依赖进行调试出现以下错误:

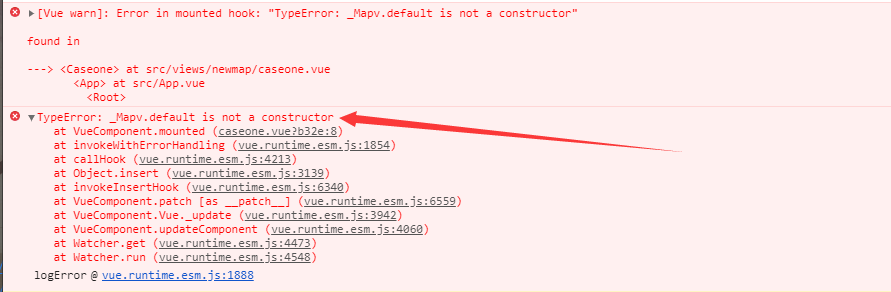

报错:

import {Mapv}  from '@supermap/iclient-ol/overlay/Mapv'  这个属于es6的问题,您可以百度就能解决
...
