描述：使用超图iDesktopX软件影像数据处理的DOM生产流程的生成连接点和生成控制点功能，总是报错找不到后缀为MSS1.rpb.aux.tif的文件。在原始的下载文件目录里面也没有找到这个文件 (G:\Work\project\hefei\Doc\practisedata\yuanshi\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001-MSS1.rpb.aux.tif) 。只找到了GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001-MSS1.rpb.aux.xml文件。

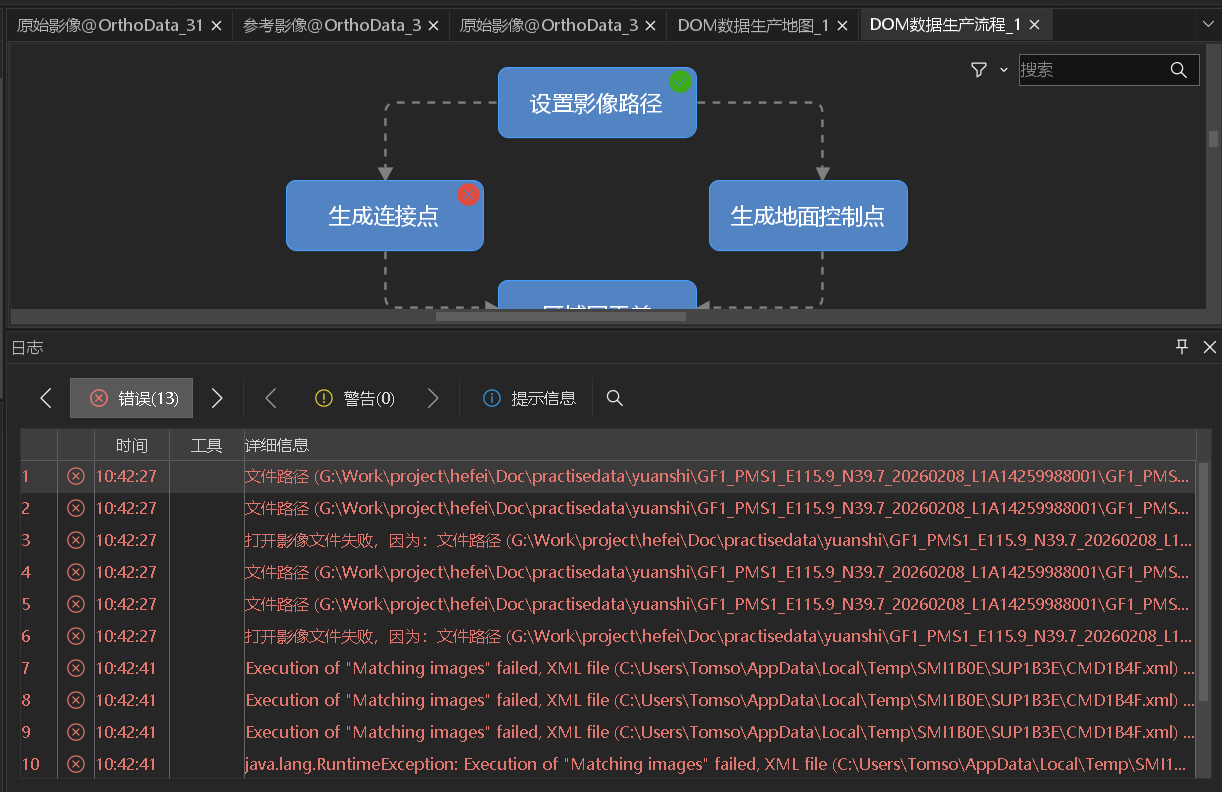

截图：
报错信息：
文件路径 (G:\Work\project\hefei\Doc\practisedata\yuanshi\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001-MSS1.rpb.aux.tif) 不存在
文件路径 (G:\Work\project\hefei\Doc\practisedata\yuanshi\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001-MSS1.rpb.aux.tif) 不存在
打开影像文件失败，因为：文件路径 (G:\Work\project\hefei\Doc\practisedata\yuanshi\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001-MSS1.rpb.aux.tif) 不存在
文件路径 (G:\Work\project\hefei\Doc\practisedata\yuanshi\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001-MSS1.xml.meta.tif) 不存在
文件路径 (G:\Work\project\hefei\Doc\practisedata\yuanshi\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001-MSS1.xml.meta.tif) 不存在
打开影像文件失败，因为：文件路径 (G:\Work\project\hefei\Doc\practisedata\yuanshi\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001\GF1_PMS1_E115.9_N39.7_20260208_L1A14259988001-MSS1.xml.meta.tif) 不存在
Execution of "Matching images" failed, XML file (C:\Users\Tomso\AppData\Local\Temp\SMI1B0E\SUP1B3E\CMD1B4F.xml) is illegal
Execution of "Matching images" failed, XML file (C:\Users\Tomso\AppData\Local\Temp\SMI1B0E\SUP1B3E\CMD1B4F.xml) is illegal
Execution of "Matching images" failed, XML file (C:\Users\Tomso\AppData\Local\Temp\SMI1B0E\SUP1B3E\CMD1B4F.xml) is illegal
java.lang.RuntimeException: Execution of "Matching images" failed, XML file (C:\Users\Tomso\AppData\Local\Temp\SMI1B0E\SUP1B3E\CMD1B4F.xml) is illegal
at com.supermap.image.processing.ImageMatcher.matchTiePoints(SourceFile:456) ~[com.supermap.image.processing.jar:?]
at com.supermap.desktop.ortho.vision.functions.customUI.DesktopProcessMatchTiePoints.childExecuteHook(SourceFile:221) ~[Ortho.jar:?]
at com.supermap.desktop.ortho.vision.functions.customUI.AbstractDesktopOrthoProcess.childExecute(SourceFile:39) ~[Ortho.jar:?]
at com.supermap.desktop.process.core.AbstractDesktopProcess.execute(SourceFile:116) ~[Process.jar:?]
at com.supermap.sps.core.workflow.impls.ProcessItemImpl.a(SourceFile:515) ~[sps-core-12.0.0-20250624.071954-87.jar:?]
at com.supermap.sps.core.workflow.impls.ProcessItemImpl.execute(SourceFile:322) ~[sps-core-12.0.0-20250624.071954-87.jar:?]
at com.supermap.sps.core.executor.ProcessTaskNode.a(SourceFile:23) ~[sps-core-12.0.0-20250624.071954-87.jar:?]
at com.supermap.sps.core.executor.AbstractTaskNode.call(SourceFile:73) ~[sps-core-12.0.0-20250624.071954-87.jar:?]
at com.supermap.sps.core.executor.DefaultWorkflowExecutor$a.a(SourceFile:411) ~[sps-core-12.0.0-20250624.071954-87.jar:?]
at com.supermap.sps.core.executor.DefaultWorkflowExecutor$a.call(SourceFile:1) ~[sps-core-12.0.0-20250624.071954-87.jar:?]
at java.util.concurrent.FutureTask.run(FutureTask.java:266) ~[?:1.8.0_432-432]
at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511) ~[?:1.8.0_432-432]
at java.util.concurrent.FutureTask.run(FutureTask.java:266) ~[?:1.8.0_432-432]
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) ~[?:1.8.0_432-432]
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) ~[?:1.8.0_432-432]
at java.lang.Thread.run(Thread.java:750) ~[?:1.8.0_432-432]
工具"生成连接点"执行状态:执行失败
模型 DOM数据生产流程_1 执行失败。
